Thermal Emission illustration

Researchers developed a novel method to control thermal emission at a designed interface. Pictured here as a wavy red line; the interface can be designed to any shape. Credit: Provided by Coskun Kocabas/The University of Manchester and Sahin Ozdemir/Penn State. All Rights Reserved.

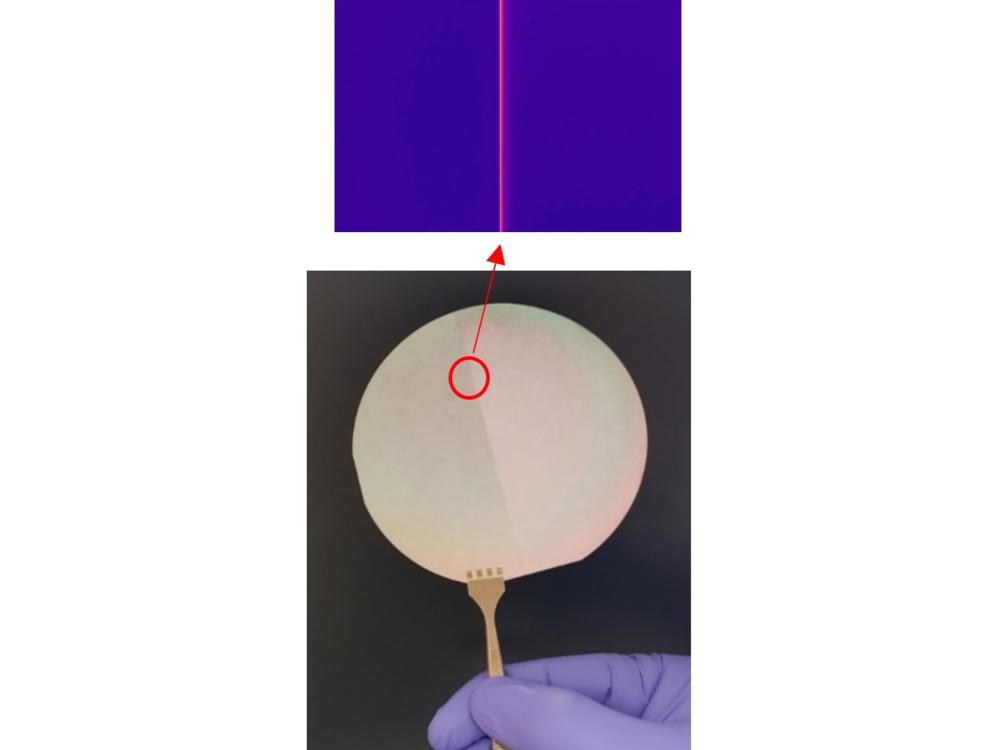

Film sample shown in this image

By Ashley WennersHerron

Finely created interfaces offer new design strategies beyond conventional materials for applications in infrared optics, sensing and more, researchers say

If a material absorbs light, it will heat up. That heat must go somewhere, and the ability to control where and how much heat is emitted can protect or even hide such devices as satellites. An international team of researchers, including those from Penn State, has developed a novel method for controlling this thermal emission, with what they called promising implications for thermal management and thermal camouflage technologies.

The team published their work today (June 7) in the print edition of Science.

Led by researchers at The University of Manchester’s National Graphene Institute in England and the Penn State College of Engineering in the United States, with experts from Koc University in Turkey and Vienna University of Technology in Austria, the team demonstrated a way to build an interface that joins two surfaces with different geometric properties to localize thermal emissions from both surfaces, enabling a “perfect” thermal emitter. This means that the designed platform can emit thermal light from contained, designated emission areas with unit emissivity, or that the platform emits the strongest thermal radiation possible at that temperature.

“We have demonstrated a new class of thermal devices using concepts from topology — a branch of mathematics studying properties of geometric objects — and from non-Hermitian photonics, which is a flourishing area of research studying light and its interaction with matter in the presence of losses, optical gain and certain symmetries,” said corresponding author Coskun Kocabas, professor of 2D device materials at The University of Manchester.

The team said the work could advance thermal photonic applications to better generate, control and detect thermal emission. One application of this work could be in satellites, said co-author Sahin Ozdemir, professor of engineering science and mechanics at Penn State. Faced with significant exposure to heat and light, satellites equipped with the interface could emit the absorbed radiation with unit emissivity along a specifically designated area designed by researchers to be incredibly narrow and in whatever shape is deemed necessary.

Getting to this point, though, was not straightforward, according to Ozdemir. He explained part of the issue is limiting the perfect thermal absorber-emitter to the interface while the rest of the structures forming the platform remains “cold,” meaning those structures do not absorb or emit any form of energy.

“Building such a perfect absorber-emitter has been a major challenge,” Ozdemir said.

It is slightly easier to build an absorber-emitter at a desired frequency — as opposed to a perfect absorber-emitter that can absorb and emit any frequency — by trapping the light inside an optical cavity, the researchers said. The optical cavity comprises two mirrors, the first of which only partially reflects light, while the second completely reflects light. This setup enables what researchers call the “critical coupling condition,” where the incoming light partially reflected by the first mirror and the reflected light trapped between the two mirrors cancel each other out exactly. This completely suppresses the reflection, so the light beam becomes trapped in the system, getting perfectly absorbed and then emitted in the form of thermal radiation.

“We took a different approach in this work, though, by bridging two structures with different topologies, meaning they absorb and emit radiation differently,” Ozdemir said. “The structures are not at the critical coupling point, so they are not considered a perfect absorber-emitter — but their interface exhibits perfect absorption and emission.”

To achieve such an interface, the researchers developed a cavity stacked with a thick gold layer that perfectly reflects incoming light and a thin platinum layer that can partially reflect incoming light. The platinum layer, which comprises two separate thicknesses stitched together, also acts as a broadband thermal absorber-emitter. Between the two mirrors, the researchers placed a transparent dielectric, or material that insulates against electrical conductivity, called parylene-C.

The researchers can adjust the thickness of the platinum layer as needed to induce the critical coupling condition at the stitched interface and trap incoming light to be perfectly absorbed. They also can move the system away from the critical coupling to sub- or super-critical coupling, where perfect absorption and emission cannot take place.

“By finely tuning the thickness of the platinum layer to a critical thickness of about 2.3 nanometers, we bring the cavity to the critical coupling condition where the system exhibits perfect absorption and, as a result, perfect emission,” said first author M. Said Ergoktas, a research associate in materials engineering at The University of Manchester. “Only by stitching two platinum layers with thicknesses smaller and larger than the critical thickness over the same dielectric layer, can we create a topological interface of two cavities where perfect absorption and emission are confined. A crucial point here is that the cavities forming the interface are not at critical coupling condition, but that the interface itself is.”

The development challenges conventional understanding of thermal emission in the field, according to co-author Stefan Rotter, a researcher at the Vienna University of Technology in Austria.

“Every hot object radiates heat in the form of incoherent, random light,” Rotter said. “Traditionally, it has been believed that thermal radiation cannot have topological properties because of its incoherent nature.”

This work, however, demonstrated that thermal emission can be engineered to have topological characteristics, which can create strongly confined states of light that emit only from the topological interface between two surfaces. The researchers said they also can design the parameters of the interface to any shape, from a narrow line to something more complicated, like the outline of the United Kingdom.

According to Kocabas, their approach to building topological systems for controlling radiation is easily accessible to scientists and engineers.

“This can be as simple as creating a film divided into two regions with different thicknesses such that one side satisfies sub-critical coupling, and the other is in the super-critical coupling regime, dividing the system into two different topological classes,” Kocabas said.

The realized interface exhibits perfect thermal emissivity, which is protected by the reflection topology and “exhibits robustness against local perturbations and defects,” according to co-author Ali Kecebas, a postdoctoral scholar at Penn State. The team used experiments and numerical simulations to confirm the system’s topological features, as well as the non-Hermitian physics underpinning how the system works.

Contributors include Sina Soleymani, who earned a doctorate in engineering science and mechanics from Penn State in 2021 when the first phases of this work were completed; Konstantinos Despotelis, Gokhan Bakan and Alessandro Principi, University of Manchester; and Askin Kocabas, Koc University, Turkey.

The European Research Council, Consolidator Grant, the Air Force Office of Scientific Research Multidisciplinary University Research Initiative (MURI) Award on Programmable Systems with Non-Hermitian Quantum Dynamics and the Air Force Office of Scientific Research Award supported this work.
